• Tires, Front Two 11R22.5G Goodyear Fuel Max RSA (497 rev/mile)
• Tires, Rear Four 11R22.5G Goodyear Fuel Max RSA (497 rev/mile)
• White Steel Disc Front Wheels and White Steel Disc Rear Wheels
• Wheel Seals, Front - Oil lubricated, SKF ScotSeal PlusXL Seals
• Wheel Seals, Rear - Oil lubricated, SKF ScotSeal PlusXL Seals
• Clearcoat Paint
• Black Side Windows Trim and Black Front Windshield Trim
• Black Door Handles
• Heated Side Mirrors w/Convex Spotter and Manual Folding
• Trailer Style Mirrors
• Fixed Rear Window
• Light Tinted Glass
• Speed Sensitive Variable Intermittent Wipers
• Composite/Galvanized Steel Panels
• Front Splash Guards
• Side Steps
• Hood Grille Mount
• Painted Grille - Plastic
• Auto On/Off Reflector Halogen Daytime Running Lights Preference Setting Headlamps w/Delay-Off
• Lights - Roof Marker/Clearance - Amber Lenses, 5 Lights
• Body Builder Wiring - At Back of Cab, Combined -inc: sealed connectors for 2 ground circuits, w/combined left/stop, combined right/stop, park lamps, back up lamps, Also includes 2 additional pass through wires to cab
• Bumper, Front - Black, Full Width
• Tow Hooks, Front (2) - Frame-Mounted, Painted Black

• Radio: AM/FM Stereo w/2 Speakers, USB input, Clock Display and Bluetooth®
• Radio w/Clock, Steering Wheel Controls and External Memory Control
• Streaming Audio
• Fixed Antenna
• Bluetooth® Wireless Phone Connectivity

• Vinyl Front Seats w/Carpet Back Material
• Bucket Folding Low Back Driver Seat w/4 Way Direction Control -inc: Manual Fore/Aft
• Fixed Driver Seat
• Bucket Fixed Low Back Passenger Seat w/2 Way Direction Control -inc: Manual Fore/Aft
• Fixed Passenger Seat
• Manual Telescoping Steering Column
• 4G LTE Embedded Modem Mobile Hotspot Internet Access
• Steering Wheel - Black PVC w/Integral Cruise Control Switches, includes Audio Controls
• Steering Column - Tilt / Telescoping
• Front Cupholder
• Cruise Control w/Steering Wheel Controls
• Horn
• Manual Air Conditioning
• Glove Box
• Driver Foot Rest
• Full Cloth Headliner
• Urethane Gear Shifter Material
• Passenger Visor Vanity Mirror
• Partial Floor Console and 2 12V DC Power Outlets
• Front Map Lights
• Delay Off Interior Lighting
• Floor Covering - Black Vinyl
• Tracker System
• Manual Regen Initiation - Driver Interface in Message Center
• Instrument Panel Bin and Dashboard Storage
• Manual 1st Row Windows
• Driver Information Center
• Trip Computer
• Analog Appearance
• Intelligent Oil Life Monitor
• Driver And Front Passenger Armrests
• 2 12V DC Power Outlets

• Electronic Stability Control (ESC)
• ABS Traction Control

6.7L POWER STROKE V8 TURBO DIESEL - 300 HP @ 2500 RPM

• 825 lb.-ft
• torque @ 1500 RPM

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 1500
• Cold Cranking Amps @ 0° F (2nd): 1500
• Cold Cranking Amps @ 0° F (3rd): 1500
• Maximum Alternator Capacity (amps): 195
• Weight Information
• Curb Weight - Front (lbs): 6294
• Curb Weight - Rear (lbs): 3746
• Gross Combined Wt Rating (lbs): 50000
• Suspension
• Suspension Type - Front: Leaf
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 10000
• Spring Capacity - Rear (lbs): 21000
• Axle Type - Front: Non-Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 10000
• Axle Capacity - Rear (lbs): 21000
• Brakes
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15
• Rear Brake Rotor Diam x Thickness (in): 15
• Front Drum Diam x Width (in): 15
• Tires
• Front Tire Order Code: T2B
• Rear Tire Order Code: R2B
• Front Tire Size: 11.0R22.5 AS
• Rear Tire Size: 11.0R22.5 AS
• Front Tire Capacity (lbs): 12350
• Rear Tire Capacity (lbs): 23360
• Revolutions/Mile @ 45 mph - Front: 497
• Revolutions/Mile @ 45 mph - Rear: 497
• Wheels
• Front Wheel Size (in): 22.5 X 8.25
• Rear Wheel Size (in): 22.5 X 8.25
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Wall to Wall (ft): 47
• Frame
• Sect Modulus Rails Only (in³): 15.14
• Frame RBM (N/A): 1,275,200
• Frame Strength (lbs): 80000
• Frame Thickness (in): 0
• Fuel Tank
• Fuel Tank Location: Left Front
• Aux Fuel Tank Location: Left Front
• Exterior Dimensions
• Wheelbase (in): 158
• Width, Max w/o mirrors (in): 96.7
• Height, Overall (in): 94.9
• Cab to Axle (in): 84
• Frame Width, Rear (in): 3.1
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 40.7
• Front Leg Room (in): 41.4
• Front Shoulder Room (in): 68
• Front Hip Room (in): 67.6
• Summary

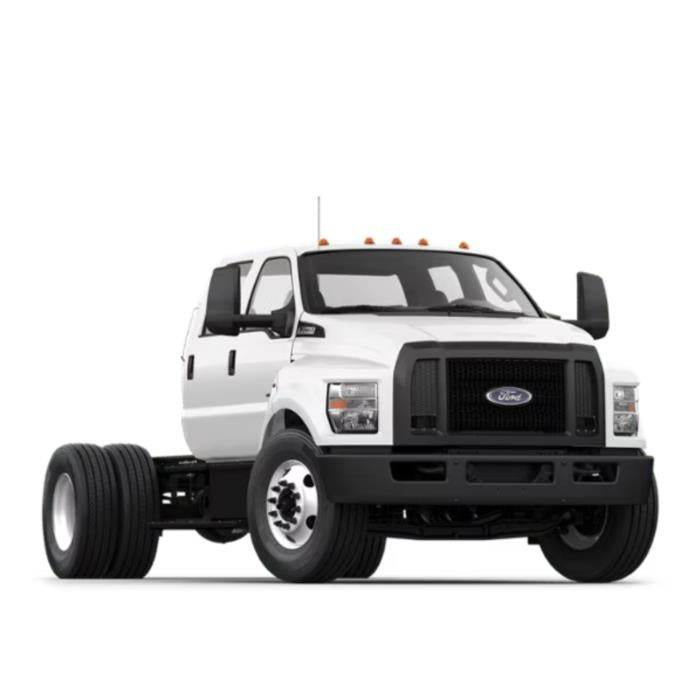

• Vehicle Name: Ford F-750 Straight Frame
• Body Style: Regular Cab
